Dierct Drive Galvanized box fan
It can be driven by diagonal belt or flexible belt, with high abrasion resistance and more convenient maintenance and installation; Request a quote for airflow, drive options, and barn integration.
- Compare fit against your house layout and climate constraints
- Move from component view to system and procurement context
- Request a quote with model context — faster scoping on our side
Global B2B · Engineering-led inquiry handling
Evaluation frame
How buyers use this page
Three lenses commercial teams use before RFQ: operating context, technical differentiation, and adjacent equipment that must work together.
Advantage
Engineering highlights
- It can be driven by diagonal belt or flexible belt, with high abrasion resistance and more convenient maintenance and installation;
- 50'' push-pull galvanized box fan:
- 275g galvanized shell, outer frame thickness 1.0mm, board and louver thickness 0.8mm, middle louver thickness1.5mm.
- Air collector is PP+ fiberglass material, thickness ≥2mm, fan blade is φ 1310mm Nylon + fiberglass material , push-pull equipment is Nylon + fiberglass material , upright tube 40*20*2mm Q235 square tube (black coated ),
- Motor baseboard material Q235, thickness 3mm (black coated) ,Tentron self-developed motor adopt high quality Aluminum alloy shell, protection level IP67, Isolation F, high efficiency, Tentron motor is equipped with overload protection device to protect the motor under extreme con
Evidence
Related equipment
Product overview
Description & technical context
Figures and narrative from the authorized catalog record — images are hosted locally for reliable delivery.
Basics
● It can be driven by diagonal belt or flexible belt, with high abrasion resistance and more convenient maintenance and installation;

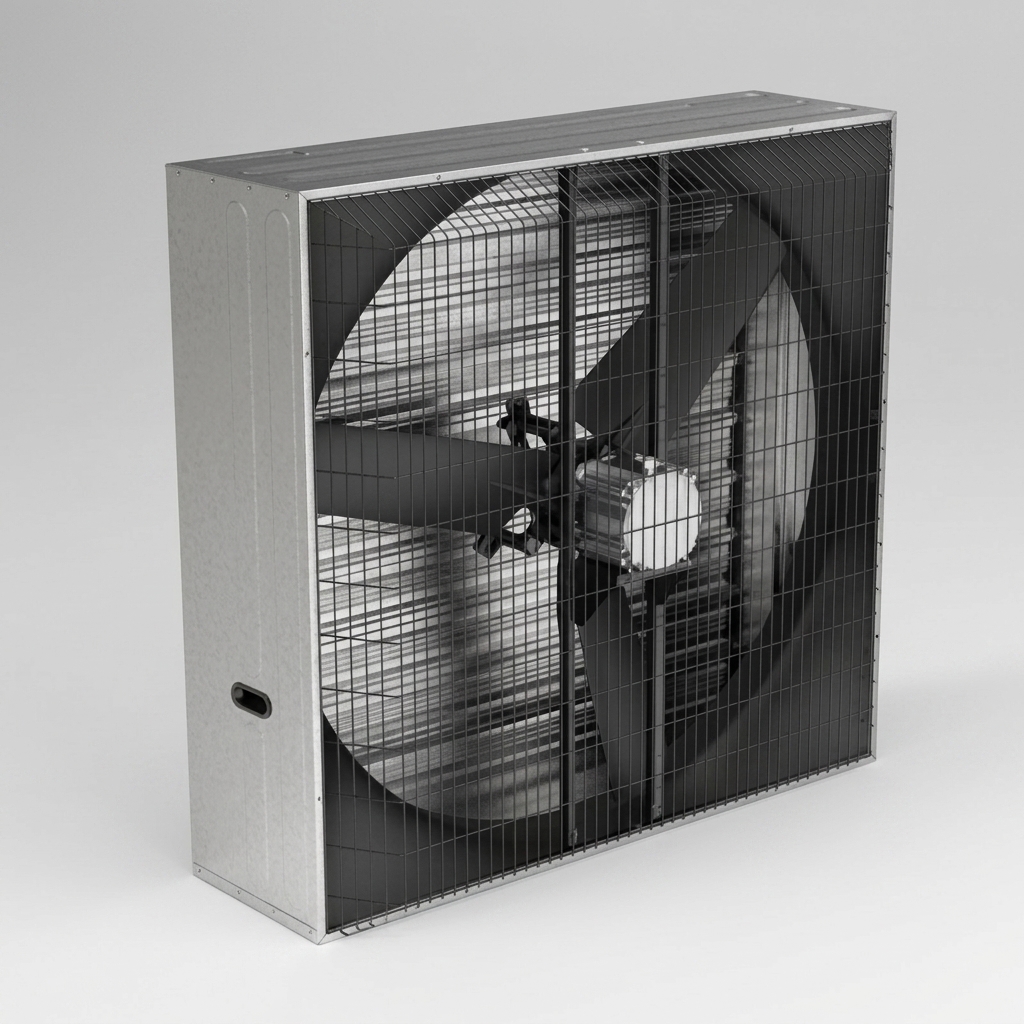

50'' push-pull galvanized box fan:
● 275g galvanized shell, outer frame thickness 1.0mm, board and louver thickness 0.8mm, middle louver thickness1.5mm.

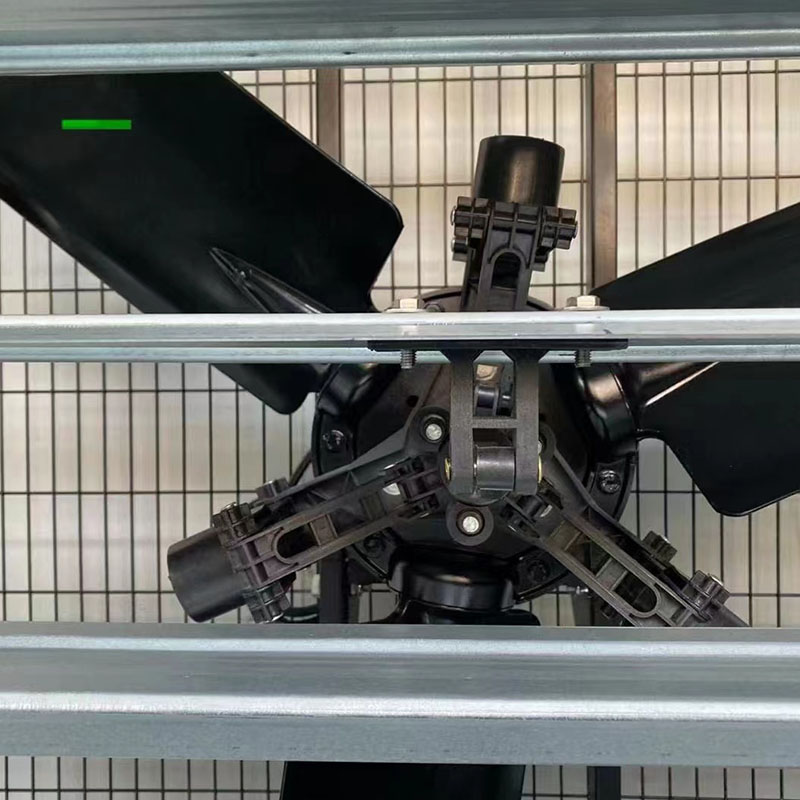

● Air collector is PP+ fiberglass material, thickness ≥2mm, fan blade is φ 1310mm Nylon + fiberglass material , push-pull equipment is Nylon + fiberglass material , upright tube 40*20*2mm Q235 square tube (black coated ),

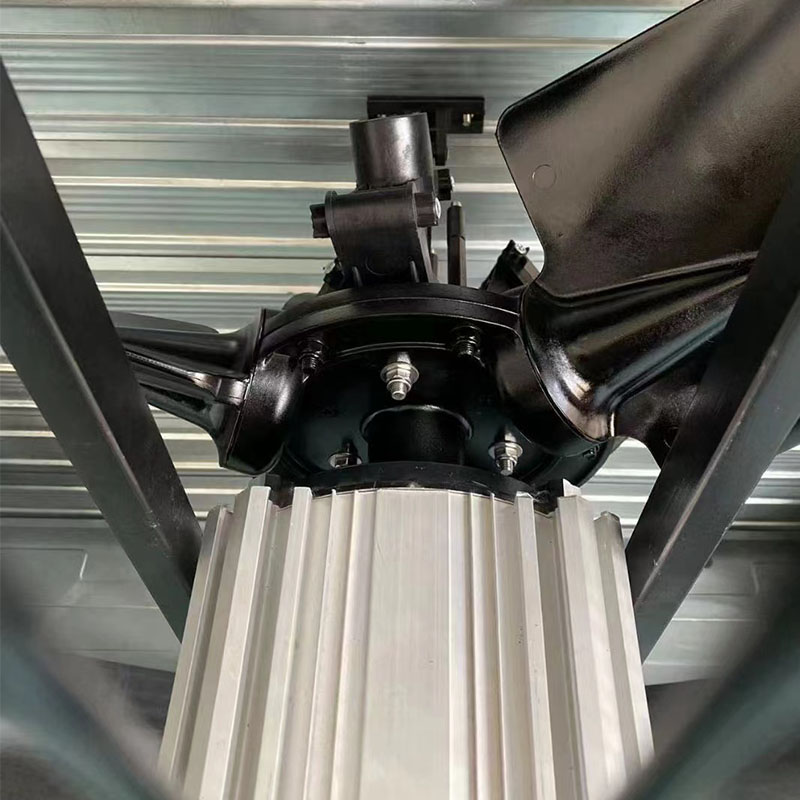

● Motor baseboard material Q235, thickness 3mm (black coated) ,Tentron self-developed motor adopt high quality Aluminum alloy shell, protection level IP67, Isolation F, high efficiency, Tentron motor is equipped with overload protection device to protect the motor under extreme conditions to ensure long service life.
● Q195 protection net (wire diameter φ 3mm, black coated), fastener material is 304 stainless steel.

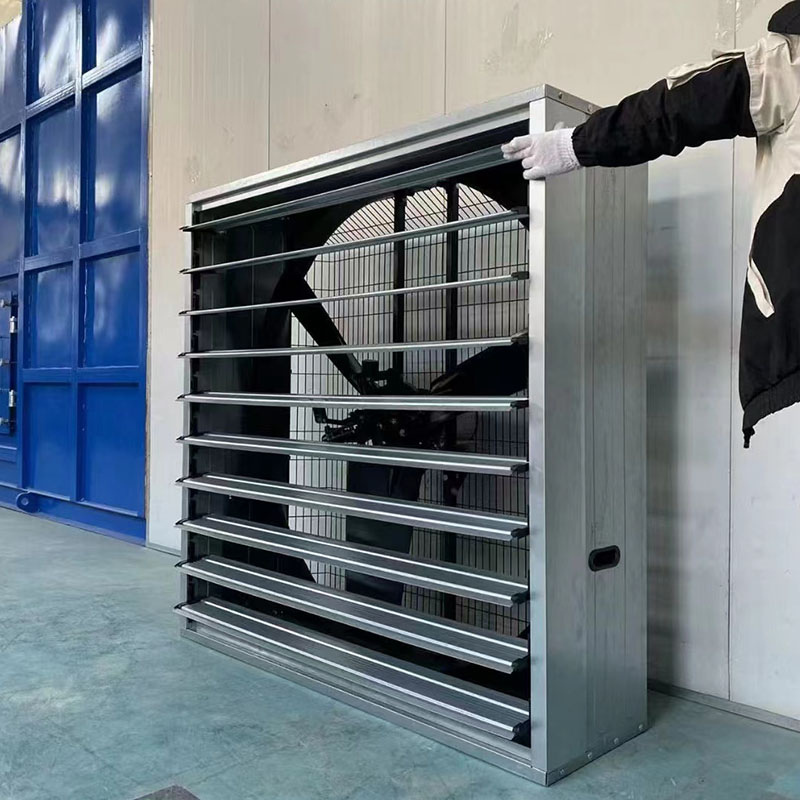

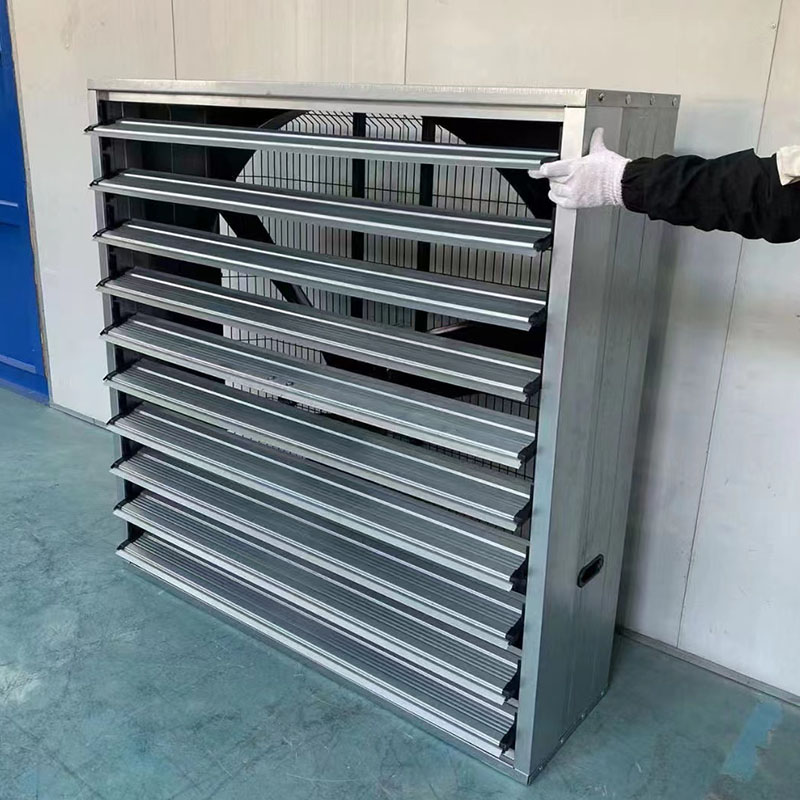

● Direct drive design, motor directly contact with blade, simple structure cause no maintenance, push-pull with louver design , better sealing and less wind loss;
● PAG fan blade ensure the fan with large air volume, light weight and high efficiency.
Decision path
How this product should be evaluated in context
Buyers should not evaluate Dierct Drive Galvanized box fan only as a standalone component. The more useful path is to review it against the airflow and cooling solution path, then compare the wider category context, and use the related buyer guidance to confirm fit before quotation.
When proof matters, anchor the discussion with the broiler airflow case study — similar operating priorities framed as a commercial decision path, not only a specification review.
Technical specifications
Commercially useful product data
Use the table to validate electrical, airflow, and mechanical fit. If something is missing for your tender, note it in the inquiry — we respond with the missing rows where available.
Model | Air volume (m³/h) | Rated power (kW) | Rated voltage （V）
| Rated current A | Blade Diameter (mm) | Drive mode | Size W*H*T（mm） | Gross weight （kg） |
TRFD-1380-TZ | 41800 | 1.1 | 380 | 4.1 | 1310 | Direct Drive | 1380*1380*520 | 80 |
